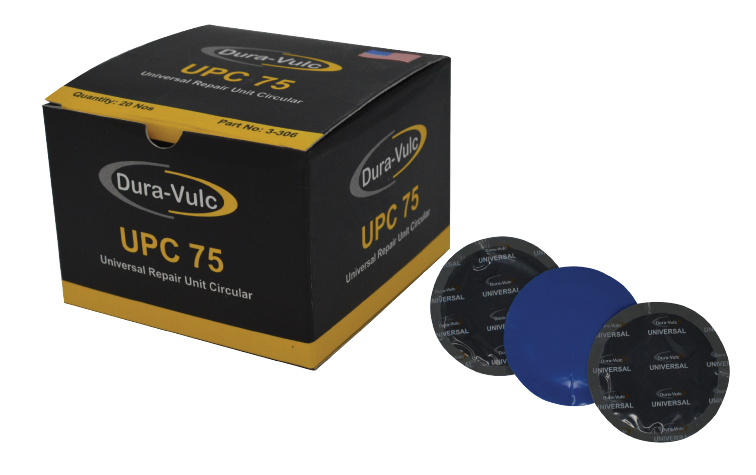

Universal Repair Unit

The Dura-Vulc® Universal Repair was developed for use in both radial and bias applications as well as tube or tubeless tire constructions. This repair concept provides added strength over a rubber reinforced repairs unit because of its special woven fabric ply that provides strength and multi universal direction control when applied to the tire. This repair choice offers premium quality strength in a multi directional choice. The Universal repair is an excellent repair choice when repairing tire where reinforcement ply is required.

Part #	Product Code	Repair Unit Ø		Injury Size Ø		Recommended Stem Insert	Qty/ Box	Boxes/ Case
		MM	Inch	MM	Inch
3-301	UP C 45	45	1 3/4	3	1/8		30	500
3-305	UP C 60	60	2 3/8	6	1/4	SI 06 W	25	320
3-306	UP C 75	75	3	8	5/16	SI 08 W	20	216
3-307	UP C 90	90	3 1/2	10	3/8	SI 10 W	10	150
3-314	UP S 75	75x75	3x3	8	5/16	SI 08 W	30	144

Injury penetration angle within 25°, use the stem repair units.

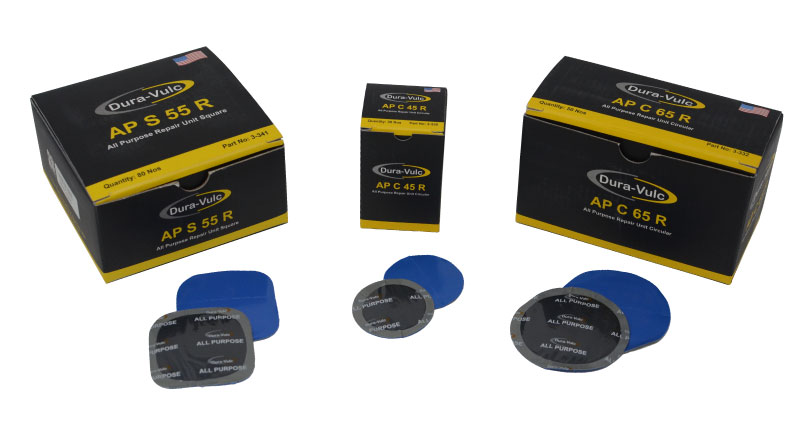

All Purpose Repair Unit

All Purpose Rubber Reinforced Repair units are for use in virtually any application. Can be used with Radial tire, and with Bias tires when reinforced with a stem insert to fill the injury. The all-purpose repair has an extra thick gauge of rubber reinforcement to provide a combination of flexibility with durability for bias and radial tube type or tubeless tires and can be used on all type of inner tubes.

Part #	Product Name	Repair Unit Ø		Injury Size Ø				Recommended Stem Insert	Qty/ Box	Boxes/ Case
				Tube Injury		Passenger / LT Tire Injury
		MM	Inches	MM	Inches	MM	Inches
3-330	AP C 45 R	45	1 3/4	20	3/4	3	1/8	SI 06 W	30	400
3-331	AP C 55 R	55	2 11/64	30	1 3/16	3	1/8	SI 06 W	30	192
3-332	AP C 65 R	65	2 9/16	40	1 1/2	6	1/4	SI 08 W	50	98
3-340	AP S 45 R	45	1 3/4	20	3/4	3	1/8	SI 06 W	100	125
3-341	AP S 55 R	55	2 11/64	30	1 3/16	3	1/8	SI 06 W	80	80
3-342	AP S 65 R	65	2 9/16	40	1 1/2	6	1/4	SI 08 W	25	196
